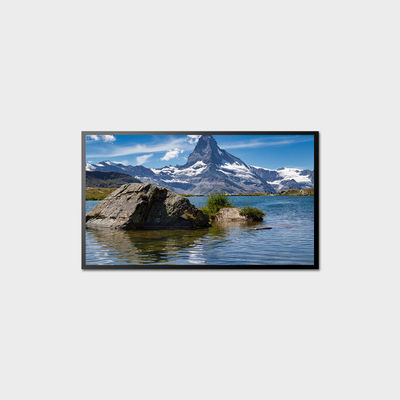

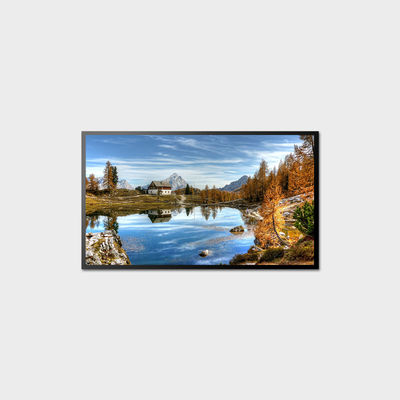

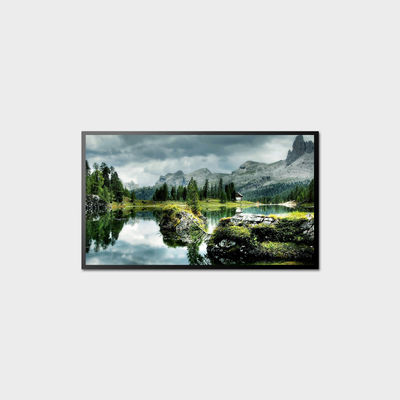

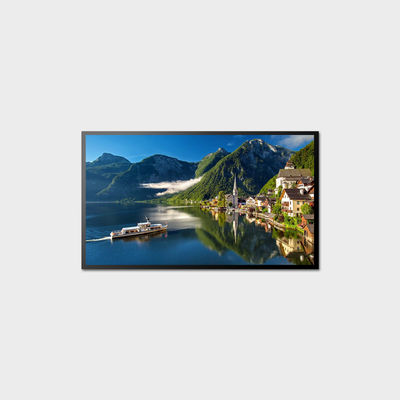

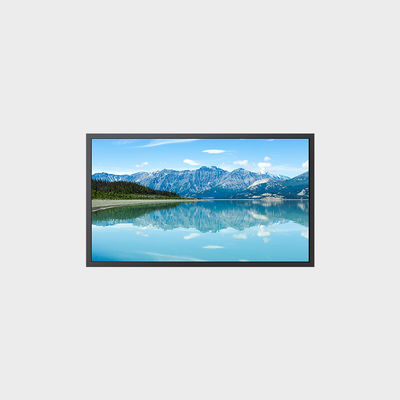

10.1-98" Tamaño del panel Display LCD de alto brillo con 700-5000 Typ. Brillo

  • 10.1-98" Panel Size High Brightness LCD Display with 700-5000 Typ. Brightness
  • 10.1-98" Panel Size High Brightness LCD Display with 700-5000 Typ. Brightness
  • 10.1-98" Panel Size High Brightness LCD Display with 700-5000 Typ. Brightness
  • 10.1-98" Panel Size High Brightness LCD Display with 700-5000 Typ. Brightness
  • 10.1-98" Panel Size High Brightness LCD Display with 700-5000 Typ. Brightness
Lugar de origen En Shenzhen
Nombre de la marca ROGIN
Cantidad de orden mínima 5
Precio Price is negotiable.
Detalles de empaquetado Cartones o cajas de madera
Tiempo de entrega 6-8 SEMANAS
Condiciones de pago T/T, L/C
Capacidad de la fuente Adecuación de los puntos

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Tamaño del panel 10.1 a 98" Brillo 700-5000 (tipo)
Resaltar

700-5000 Tipo. Brillo de la pantalla LCD

,

10.1-98  Pantalla de tamaño LCD

,

Exhibición del LCD del alto brillo
Deja un mensaje
Descripción de producto

Catálogo de productos de alta pantalla LCD

Tipo de borde:

Tamaño Modelo Brillo Resolución Top (℃) Aa (mm) OD (mm) SI Contraste
15.6 LCMA-RX0156GB05-C060 600 3840*2160 0 ~ 50 345.6*194.4 353*210.1*4.2 EDP 1000: 1
15.6 LCMA-RX0156GI06-C050 500 1920x1080 0 ~ 60 344.16*193.59 350.66*205.78*2.89 LVDS 1500: 1
17.0 LCMA-RX0170GA02-C100 1000 1280*1024 (0-50) 337.92*270.336 358.5*296.5*10.3 LVDS (2 CH, 8 bits) 1000: 1
18.5 LCMA-RX0185GB06-C100 1000 1920*1080 (0-50) 408.96*230.04 430.37*254.6*11.2 LVDS (2 CH, 8 bits) 1000: 1
18.5 LCMA-RX0185GB10-C050 500 1920*1080 (0-50) 409.8*230.04 431*255*9.2 LVDS 1000: 1
19.0 LCMA-RX0190GB01-C050 500 1280*1024 (0-50) 374.784*299.82 396*324*10.4 LVDS (2 CH, 8 bits) 1200: 1
21.5 LCMA-RX0215GL01-C070 700 1920*1080 (0-50) 476.064*267.786 497.6*292.2*10.5 LVDS (2 CH, 8 bits) 1000: 1
21.5 LCMA-RX0215GB02-C100 1000 1920*1080 (-20-80) 476.64*268.11 495.6*292.2*11.3 LVDS (2 CH, 8 bits) 1000: 1
23.8 LCMA-RX0238GA01-C150 1500 1920*1080 (0-50) 527.04*296.46 557.2*326.6*17.5 LVDS (2 CH, 8 bits) 3000: 1
23.8 LCMA-RX0238GI01-C085 850 1920*1080 (0-50) 527.04*269.46 543*317.4*11.1 LVDS (2 CH, 8 bits) 1000: 1
27.0 LCMA-RX0270GA07-C070 700 1920*1080 (0-50) 597.6*336.15 613.6*356.85*10.5 LVDS (2 CH, 8 bits) 3000: 1
27.0 LCMA-RX0270GA10-C050 500 1920*1080 (0-50) 597.6*336.15 613.6*356.85*10.5 LVDS (2 CH, 8 bits) 3000: 1
27.0 LCMA-RX0270GA11-C150 1500 1920*1080 (0-50) 597.6*336.14 628*366.4*23.7 LVDS (2 CH, 8 bits) 3000: 1
27.0 LCMA-RX0270GB01-C100 1000 1920*1080 (0-50) 597.888*336.312 611.5*335.8*13.2 LVDS (2 CH, 8 bits) 1000: 1
27.0 LCMA-RX0270GB06-C070 700 1920*1080 (0-50) 597.888*336.312 611.5*355.8*15.2 LVDS (2 CH, 8 bits) 1000: 1
32.0 LCMA-RX0320GA02-C100 1000 1920*1080 (0-50) 698.4*392.84 729.4*424.2*29.5 LVDS (2 CH, 10 bits) 3000: 1
32.0 LCMA-RX0320GI01-C100 1000 3840*2160 (0-50) 698.4*392.85 751.5*446.01*30.5 V por uno 8 carril 3000: 1
32.0 LCMA-RX0320GI04-C100 1000 3840*2160 (0-50) 698.4*392.85 751.5*446.01*30.5 V por uno 8 carril 3000: 1
43.0 LCMA-RX0430GL01-C150 1500 1920*1080 (0-50) 941.184*529.416 973.2*561.5*29.5 LVDS (2 CH, 8 bits) 1000: 1
43.0 LCMA-RX0430GL10-C150 1500 1920*1080 (0-50) 941.184*529.416 973.2*561.5*29.5 LVDS (2 CH, 8 bits) 1000: 1
43.0 LCMA-RX0430GB12-C050 500 3840*2160 (0-50) 941.18*529.42 973.2*561.5*20.3 V por uno 8 carril 1200: 1
43.0 LCMA-RX0430GR02-C040 400 1920*1080 (0-50) 941.8*529.42 961*549.7*17.1 LVDS (2 CH, 8 bits) 1200: 1
49.0 LCMA-RX0490GL09-C250 2500 1920*1080 (0-50) 1073.78*604 1103.8*634*31.5 LVDS (2 CH, 8/10 bits) 1300: 1
49.0 LCMA-RX0490GL10-C150 1500 3840*2160 (0-50) 1073.78*604 1103.8*634*31.5 V por uno 8 carril 1100: 1
49.0 LCMA-RX0490GB03-C060 500 3840*2160 (0-50) 1073.78*604 1095.18*630.1*13.8 LVDS (2 CH, 8/10 bits) 1200: 1
55.0 LCMA-RX0550GR03-C070 700 3840*2160 (0-50) 1209.6*680.4 1233.8*704.6*17.7 V por uno 8 carril 1300: 1

Tipo directo:

Tamaño Modelo Brillo Resolución Top (℃) Aa (mm) OD (mm) SI Contraste
23.8 LCMA-RX0238GA02-Z350 3500 1920*1080 (0-50) 527.04*269.46 554.04*323.53*41 LVDS (2 CH, 8 bits) 3000: 1
27.0 LCMA-RX0270GL06-Z080 800 3840*2160 (0-50) 596.74*335.66 626*364.4*24 LVDS (2 CH, 8 bits) 1000: 1
27.0 LCMA-RX0270GA15-Z150 1500 1920*1080 0 ~ 50 597.89*336.31 620*359.69*20.1 LVDS (2 CH, 8 bits) 3000: 1
32.0 LCMA-RX0320GL17-Z080 800 3840*2160 (0-50) 697.31*292.23 727*421*28.9 EDP ​​(4 carriles) 1300: 1
32.0 LCMA-RX0320GL24-Z150 1500 1920*1080 0 ~ 50 698.4*392.85 731.9*431.4*53.8 LVDS 1200: 1
43.0 LCMA-RX0430GL19-Z100 1000 3840*2160 (0-50) 941.18*529.42 973.8*567*58.4 V por uno 8 carril 1100: 1
43.0 LCMA-RX0430GL13-Z200 2000 1920*1080 (0-50) 940.9*529.3 973.8*567*58 LVDS (2 CH, 8 bits) 1200: 1
49.0 LCMA-RX0490GL04-Z250 2500 1920*1080 (0-50) 1073.8*604 1098*628*55 LVDS (2 CH, 8 bits) 1000: 1
49.0 LCMA-RX0490GL14-Z350 3500 3840*2160 (0-50) 1073.78*604 1106.4*641.6*57.5 V por uno 8 carril 1100: 1
55.0 LCMA-RX0550GB10-Z200 2000 1920*1080 (0-50) 1209.6*680.4 1242.1*718*56.1 LVDS (2 CH, 10 bits) 1200: 1
55.0 LCMA-RX0550GB14-Z200 2000 1920*1080 (0-50) 1209.6*680.4 1242.1*718*56.1 LVDS (2 CH, 10 bits) 1200: 1
55.0 LCMA-RX0550GL24-Z200 2000 1920*1080 (0-50) 1209.6*680.4 1242.1*718*58.1 V por uno 8 carril 1300: 1
55.0 LCMA-RX0550GL30-Z300 3000 1920*1080 (0-50) 1209.6*680.4 1242.1*718*58.1 LVDS (2 CH, 8 bits) 1000: 1
65.0 LCMA-RX0650GL04-Z200 2000 1920*1080 (0-50) 1428.48*803.52 1452.4*827.5*59 V por uno 8 carril 1300: 1
65.0 LCMA-RX0650GL05-Z200 2000 3840*2160 (0-50) 1428.5*803.5 1461*843.1*59.5 V por uno 8 carril 1100: 1
65.0 LCMA-RX0650GB08-Z200 2000 1920*1080 (0-50) 1428.5*803.5 1461*843.1*59.5 V por uno 8 carril 1200: 1
75.0 LCMA-RX0750GL02-Z200 2000 3840*2160 (0-50) 1649.66*927.94 1689*971*66.15 V por uno 8 carril 1200: 1
86.0 LCMA-RX0860GL03-Z100 1000 3840*2160 (0-50) 1895.04*1065.94 1933*1108.5*72.1 V por uno 8 carril 1200: 1
86.0 LCMA-RX0860GL04-Z200 2500 3840*2160 (0-50) 1895.04*1065.94 1933*1108.5*72.1 V por uno 8 carril 1200: 1

Tipo de borde (temperatura amplia)

Tamaño Modelo Brillo Resolución Top (℃) Aa (mm) OD (mm) SI Contraste
10.1 LCMA-RX0101GI02-C120 1200 1280*800 (-20-70) 216.96*135.6 230.7*152.55*7 LVDS (1 CH, 6/8 bits) 800: 1
10.1 LCMA-RX0101GI01-C100 1000 1280*800 (-20-70) 216.96*135.6 229.46*149.1*7.7 LVDS (1 CH, 8 bits) 800: 1
10.1 LCMA-RX101B-1000 1000 1280*800 (-20-70) 216.96*135.6 229.46*149.1*7.7 LVDS (1 CH, 8 bits) 1000: 1
10.4 LCMA-RX0104GR02-C150 1500 1024*768 (-30-80) 210.43*157.824 227*175.8*9.2 LVDS (1 CH, 6/8 bits) 900: 1
12.1 LCMA-RX0121GI01-C150 1500 1280*800 (-20-70) 261.12*163.2 278*184*11 LVDS (1 CH, 6/8 bits) 1000: 1
12.1 LCMA-RX0121GR01-C100 1000 1024*768 (-30-80) 245.76*184.32 260.5*204*8.46 LVDS (1 CH, 6/8 bits) 1000: 1
12.1 LCMA-RX0121GR03-C150 1500 1280*800 (-20-70) 261.12*163.2 277.7*180.6*9.5 LVDS (1 CH, 6/8 bits) 1200: 1
12.1 LCMA-RX0121GB02-C050 500 1024*768 (-20-70) 245.76*184.32 260.5*204*9.2 LVDS (1 CH, 6/8 bits) 1200: 1
13.3 LCMA-RX0133GB02-C080 800 1920*1080 (-20-70) 293.76*165.24 307.6*183.05*6.7 EDP ​​(2 carriles) 800: 1
13.3 LCMA-RX0133GB03-C100 1000 1920*1080 (-20-70) 293.76*165.24 307.6*183.05*7.28 EDP ​​(2 carriles) 800: 1
15.0 LCAM-RX0150GB05-C150 1500 1024*768 (-20-70) 304.128*228.096 326.5*253.5*9.7 LVDS (1 CH, 8 bits) 1000: 1
15.0 LCMA-RX0150GB03-C100 1000 1024*768 (-20-70) 304.128*228.096 326.5*253.5*9.7 LVDS (1 CH, 8 bits) 1000: 1
15.0 LCMA-RX0150GR01-C150 1500 1024*768 (-20-70) 304.128*228.096 326.5*253.5*9.7 LVDS (1 CH, 8 bits) 1000: 1
15.0 LCMA-RX0150GI01-C100 1000 1024*768 (-20-70) 304.128*228.096 326.5*253.5*9.6 LVDS (1 CH, 6/8 bits) 2000: 1
15.0 LCMA-RX0150GI02-C100 1000 1024*768 (-30-80) 304.128*228.096 326.5*253.5*9.6 LVDS (1 CH, 6/8 bits) 2500: 1
15.6 LCMA-RX0156GA02-C100 1000 1920*1080 (-20-70) 344.16*193.59 363.8*215.9*8.8 EDP ​​(2 carriles) 1000: 1
15.6 LCMA-RX0156GI01-C100 1000 1920*1080 (-20-70) 344.16*193.59 360*212.3*6.3 EDP ​​(2 carriles) 1000: 1
15.6 LCMA-RX0156GB03-C100 1000 1920*1080 (0-70) 344.16*193.59 363.8*216*9.6 LVDS (2 CH, 8 bits) 1200: 1
17.0 LCAM-RX0170GA06-C110 1100 1280*1024 (-30-85) 337.920*270.336 358.5*296.5*9.10 LVDS (2 CH, 8 bits) 800: 1
17.3 LCMA-RX0173GA01-C080 800 1920*1080 (0-70) 381.888*214.812 403*240*13 LVDS (2 CH, 8 bits) 600: 1
18.5 LCMA-RX0185GB03-C120 1200 1920*1080 (-30-80) 408.96*230.04 430.4*256.6*12 LVDS (2 CH, 8 bits) 1200: 1
18.5 LCMA-RX0185GA04-C100 1000 1920*1080 (-20-70) 408.96*230.04 430.4*254.6*12.5 LVDS (2 CH, 8 bits) 1000: 1
21.5 LCMA-RX0215GB26-C150 1500 1920*1080 (-20-70) 476.64*268.11 504.2*295*15.5 LVDS 1000: 1
21.5 LCMA-RX0215GB08-C150 1500 1920*1080 (-20-70) 476.64*268.11 502.8*299.18*16 LVDS (2 CH, 8 bits) 1000: 1
21.5 LCMA-RX0215GB28-Z150 1500 1920*1080 (-20-70) 476.64*268.11 496*292.5*15.9 LVDS 1000: 1
21.5 LCMA-RX0215GB16-C100 1000 1920*1080 (-20-70) 476.64*268.11 495.6*292.2*9.5 LVDS (2 CH, 8 bits) 1000: 1
24.0 LCMA-RX0240GA01-C100 1000 1920*1080 (-20-70) 531.36*298.89 556*323.2*17 LVDS (2 CH, 8 bits) 5000: 1
32.0 LCMA-RX0320GB01-C150 1500 1920*1080 (-20-70) 698.4*392.85 729.4*424.2*29.5 LVDS (2 CH, 8 bits) 1200: 1
32.0 LCMA-RX0320GB17-C150 1500 1920*1080 (-20-70) 698.4*392.85 729.4* 424.2* 29.5 LVDS 1200: 1
32.0 LCMA-RX0320GP01-C005 50 1920*1080 (-20-70) 696.96*392.04 734*420*17.7 EDP ​​(2 carriles) 17: 1
32.0 LCMA-RX0320GL18-C120 1200 1920*1080 (-20-70) 698.4*392.85 729.4*424.2*29.5 LVDS (2 CH, 8 bits) 1300: 1
43.0 LCMA-RX0430GB02-C150 1500 1920*1080 (-20-70) 941.18*529.42 973.2*561.5*29.5 LVDS (2 CH, 8 bits) 1200: 1
55.0 LCMA-RX0550GB03-C150 1500 1920*1080 (-30-80) 1209.6*680.4 1243*725.4*36.7 LVDS (2 CH, 10 bits) /

Tipo directo (temperatura amplia)

Tamaño

Modelo

 Brillo Resolución Arriba Aa (mm) OD (mm) SI Contraste
18.5 LCMA-RX0185GB09-Z150 1500 1920*1080 '-30 ~ 80 408.96*230.04 431*255*11 LVDS 1200: 1
18.5 LCMA-RX0185GB09-Z250 2500 1920*1080 (-20-70) 476.64*268.11 504.2*295*15.5 LVDS 1000: 1
21.5 LCMA-RX0215GB28-Z150 1500 1920*1080 (-20-70) 476.64*268.11 496*292.5*15.9 LVDS 1000: 1
21.5 LCMA-RX0215GB21-Z500 5000 1920*1080 (-20-70) 476.6*268.1 502.82*294.26*36.2 LVDS (2 CH, 8 bits) 1000: 1
23.8 LCMA-RX0238GB03-Z150 1500 1920*1080 (-20-70) 527.04*296.46 550*320*20.1 LVDS (2 CH, 8 bits) 1000: 1
32.0 LCMA-RX0320GB06-Z200 2000 1920*1080 (-20-70) 698.4*392.85 731.9*431.4*56 LVDS (2 CH, 8 bits) 1200: 1
32.0 LCMA-RX0320GL20-Z200 2000 1920*1080 (-20-70) 698.4*392.85 731.9*431.4*56 LVDS (2 CH, 8 bits) 1300: 1
43.0 LCMA-RX0430GB03-Z200 2000 1920*1080 (-20-70) 940.896*529.254 965.2*553.4*55 LVDS (2 CH, 8 bits) 1200: 1
43.0 LCMA-RX0430GB07-Z250 2500 1920*1080 (-20-70) 940.9*529.25 973.8*567*56.4 LVDS (2 CH, 8 bits) 1200: 1
43.0 LCMA-RX0430GB13-Z350 3500 1920*1080 (-20-70) 940.9*529.25 966.8*554.8*60.7 LVDS (2 CH, 8 bits) 1200: 1
55.0 LCMA-RX0550GB07-Z200 2000 1920*1080 (-20-70) 1209*680.4 1233.6*704.4*55 LVDS (2 CH, 10 bits) 1000: 1
55.0 LCMA-RX0550GL32-Z200 2000 1920*1080 (-20-70) 1209.6*680.4 1242.1*718*58.1 V por uno 8 carril 1300: 1
55.0 LCMA-RX0550GL25-Z350 3500 1920*1080 (-20-70) 1209*680.4 1233.6*704.4*55 V por uno 8 carril 1300: 1
55.0 LCMA-RX0550GB09-Z250 2500 1920*1080 (-30-80) 1209.6*680.4 1242.1*718*56.1 LVDS (2 CH, 8/10 bits) /
65.0 LCMA-RX0650GB04-Z200 2000 3840*2160 (-30-80) 1428.48*803.52 1452.4*827.5*61 V por uno 8 carril 1200: 1
65.0 LCMA-RX0650GB04-Z260 2600 3840*2160 (-30-80) 1428.48*803.52 1452.4*827.5*61 V por uno 8 carril 1200: 1
65.0 LCMA-RX0650GB10-Z350 3500 3840*2160 (-30-80) 1428.48*803.52 1454*828.7*58.6 V por uno 8 carril 1200: 1
75.0 LCMA-RX0750GB02-Z350 3500 3840*2160 (-30-80) 1649.7*927.9 1683*975.4*55.3 V por uno 8 carril 1200: 1

Ventaja del producto ►

1. Brillo CUSTomización 700-5000CD/m2.
2. Outdoor Sunlight legible.
3. Baja consumo de energía.
4. Aliformidad alta hasta el 85%.
5. Larga vida útil, 50k horas (típ), hasta 80k horas
6. Estructura de retroiluminación de aluminio con buena disipación de calor.
7. Rango de temperatura de todo hasta -30 ° C -80 ° C.
8. Resistencia a la alta conmoción y alta estabilidad.

Aplicación de productos ►

1.Bus Station Signage Board.
2. Pila de carga inteligente.
3. Outdoor Electronic News Reading Board.
4. Gabinete Express Intelligent.
5. Máquina de expansión.
6. Máquina publicitaria comercial.
7. Máquina de consulta de información de attracciones.
8. Junta de información de comunidad.
10.1-98" Tamaño del panel Display LCD de alto brillo con 700-5000 Typ. Brillo 0 10.1-98" Tamaño del panel Display LCD de alto brillo con 700-5000 Typ. Brillo 1 10.1-98" Tamaño del panel Display LCD de alto brillo con 700-5000 Typ. Brillo 2 10.1-98" Tamaño del panel Display LCD de alto brillo con 700-5000 Typ. Brillo 3



►Catálogo de productos de pantalla LCD de alto brillo.pdf ...

Etiquetas:

Pantalla LCD de alto brillo

lcd al aire libre que hace publicidad de la exhibición

Pantalla publicitaria de alto brillo
