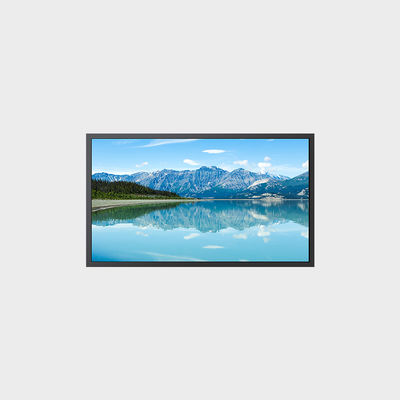

32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100

Lugar de origen shenzhen
Nombre de la marca ROGIN
Número de modelo El número de unidades de producción de los equipos de ensayo se calculará en función de las caracter
Cantidad de orden mínima 5
Precio Price is negotiable.
Detalles de empaquetado Cartones o cajas de madera
Tiempo de entrega 6-8 semanas
Condiciones de pago T/T, L/C
Capacidad de la fuente Adecuación para el punto

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre Pantalla LCD TFT Tamaño del panel 32 "
Resolución 3840*2160 Brillo 1000 (típ.)
Temperatura operativa. 0 ~ 50 ℃ Área activa 698.4*392.85 mm
Dimensión de esquema 751.5*446.01*30.5 mm
Resaltar

32 inch TFT display with touch panel

,

high brightness LCD display with customization

,

TFT display with high luminance support

Deja un mensaje
Descripción de producto
32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100
Product Attributes
Attribute Value
Name TFT LCD Display
Panel Size 32"
Resolution 3840*2160
Brightness 1000 (Typ.)
Operating Temp. 0~50℃
Active Area 698.4*392.85mm
Outline Dimension 751.5*446.01*30.5mm
Product Description

32 Inch TFT Display With High Lumin Solution Support LVDS Interface LCMA-RX0320GI04-C100

Product Advantages
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Applications
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100 0 32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100 1 32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100 2 32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100 3
Specifications

LCMA-RX0320GI04-C100

Brand Rogin
Series LCD Display
Panel Size 32 inch
Model LCMA-RX0320GI04-C100
Brightness 1000
Power Consumption 131W
Resolution 3840*2160
Active Area 698.4*392.85mm
Overall Size 751.5*446.01*30.5mm
Viewing Angle 89/89/89/89
Interface Definition 51pins V-by-One 8 lane
Backlight Type WLED
Contrast Ratio 3000:1
Aspect Ratio 16:9
Touch Panel Without
Operating Temperature 0~50 ℃
