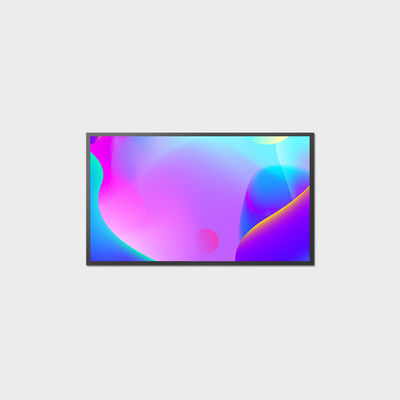

32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150

Lugar de origen shenzhen
Nombre de la marca ROGIN
Número de modelo El número de unidades de producción de los equipos de ensayo se calculará en función de las caracter
Cantidad de orden mínima 5
Precio Price is negotiable.
Detalles de empaquetado Cartones o cajas de madera
Tiempo de entrega 6-8 semanas
Condiciones de pago T/T, L/C
Capacidad de la fuente Adecuación para el punto

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre Pantalla LCD TFT Tamaño del panel 32 "
Resolución 1920*1080 Brillo 1500 (tipo)
Temperatura operativa. -20-70℃ Área activa 698.4*392.85 mm
Dimensión de esquema 729.4*424.2*29.5 mm
Resaltar

32 inch TFT display with touch panel

,

high brightness LCD display 1500nits

,

TFT display with high luminance support

Deja un mensaje
Descripción de producto
32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150
Product Attributes
Attribute Value
Name TFT LCD Display
Panel Size 32"
Resolution 1920*1080
Brightness 1500 (Typ.)
Operating Temp. -20-70℃
Active Area 698.4*392.85mm
Outline Dimension 729.4*424.2*29.5mm
Product Description

32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150

Product Advantages
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Applications
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150 0 32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150 1 32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150 2 32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150 3
Specifications

LCMA-RX0320GB01-C150

Brand Rogin
Series LCD Display
Panel Size 32 inch
Model LCMA-RX0320GB01-C150
Brightness 1500
Power Consumption 76.5W
Resolution 1920*1080
Active Area 698.4*392.85mm
Overall Size 729.4*424.2*29.5mm
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 1200:1
Aspect Ratio 16:9
Touch Panel Without
Operating Temperature -20~70 ℃
